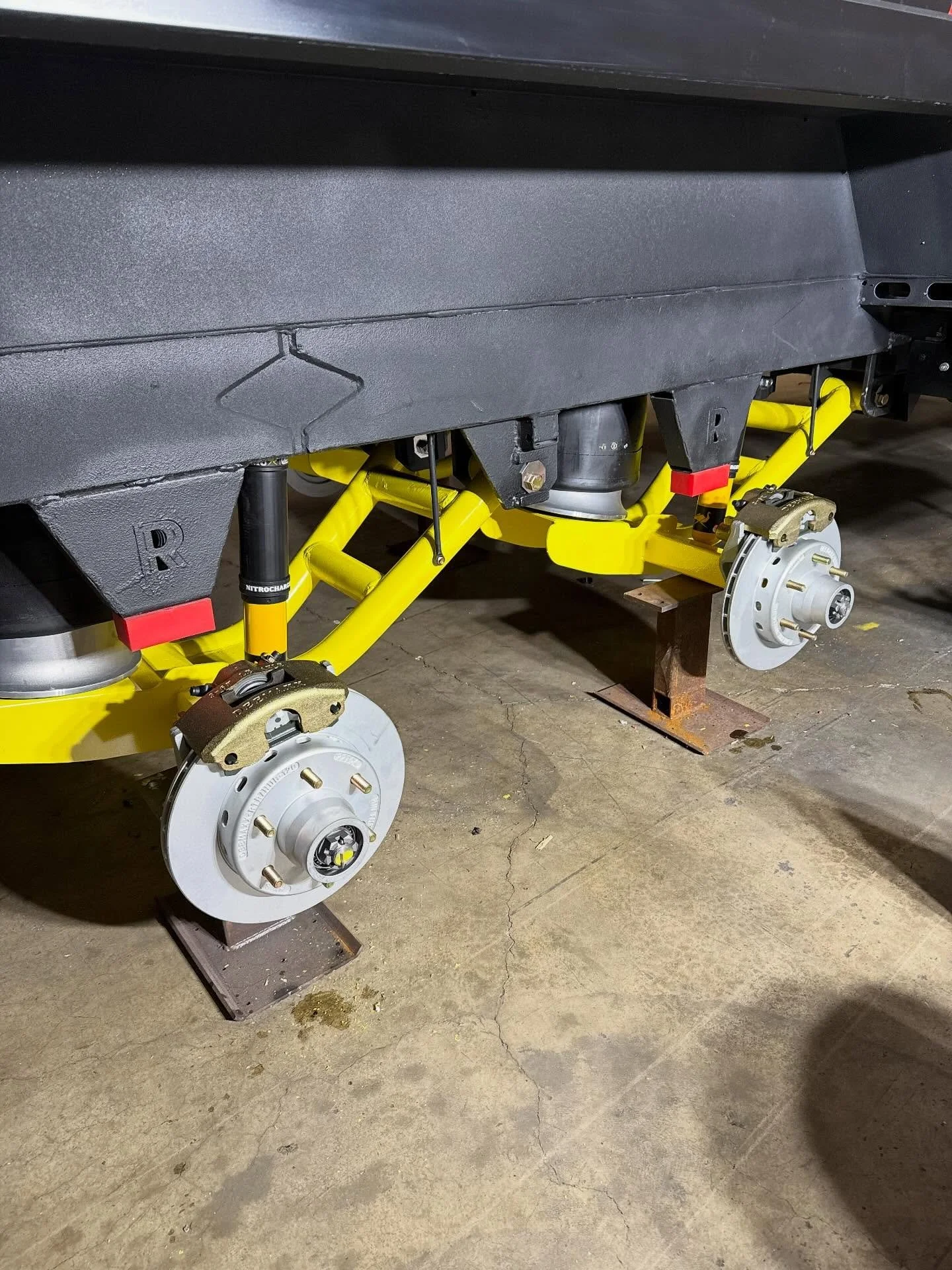

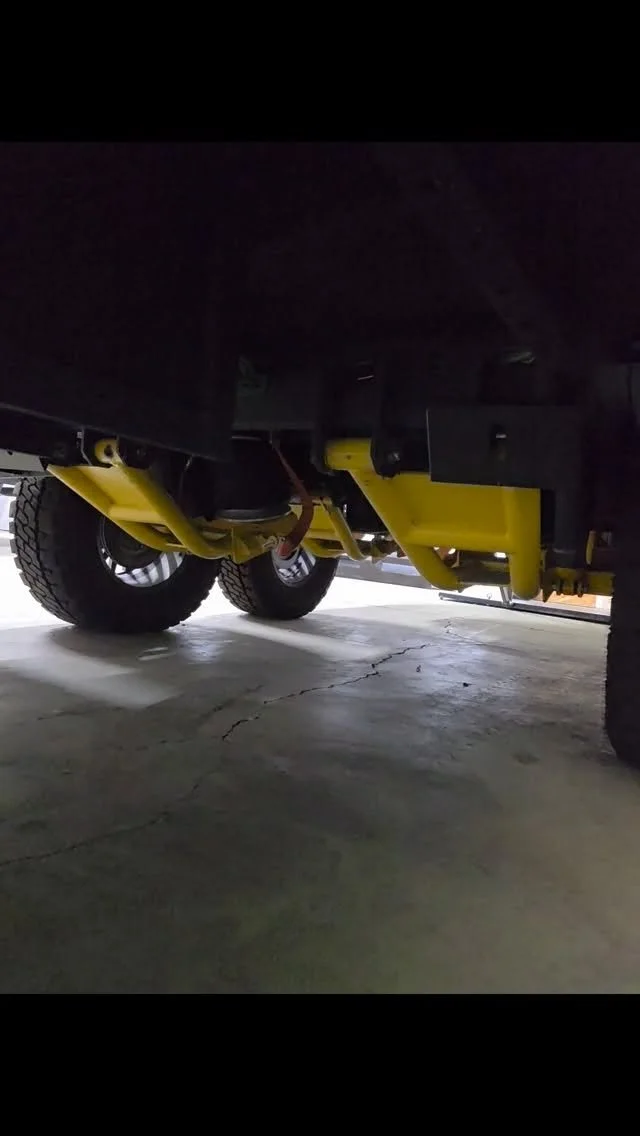

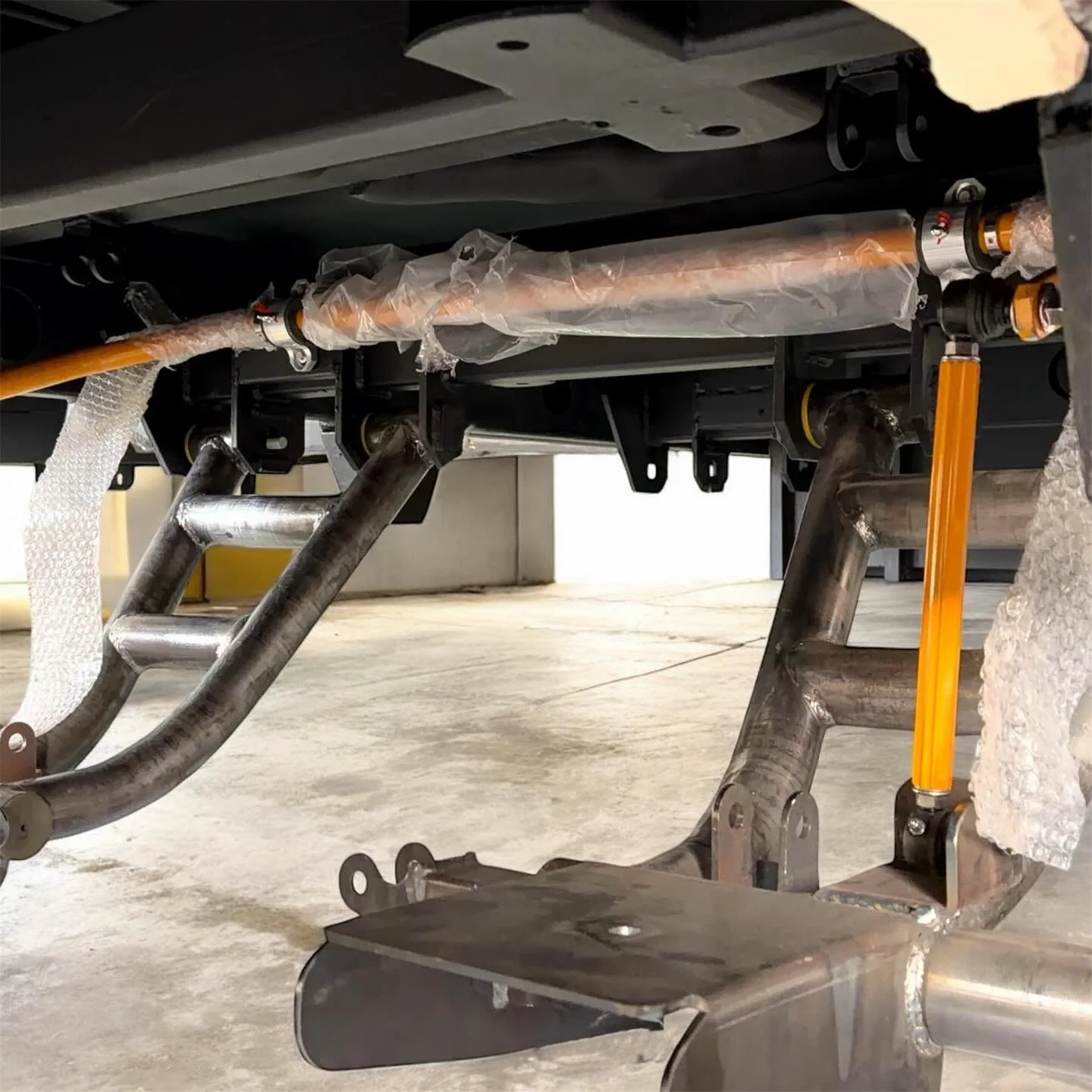

Heavy Duty 13,000+ lbs rated in-house engineered RREV Independent Suspension Swing Arm (ISA) suspension.

• Built with HD DOM Tubing

• Buckling Load Rating of 18, 550 N

• 4,300+ lbs Load Capacity per Arm

4 Air Springs with aluminum base, inbuilt bump stops and Fox Shocks with remote reservoir.

Bluetooth Low Energy (BLE) to the Air Suspension controlled via an app with a few important functions:

- Independent control of all 4 wheels (great for off-roading and leveling).

- Airing up and down all the springs at once.

- Independent control of front and rear 2 wheels (great for changing tires or running on a single axle).

- Up to 3 presets so you can preprogram what pressure you want for freeway, off road etc. Also great for hitching unhitching.

- Load sharing and terrain based full time auto leveling (optional).

- 24v ARB Twin Compressor.

Five Solid A356 aluminum with T6 heat treatment construction 16” MATTE BLACK Method Wheels..

Five 33” Mickey Thompson Boss Baja A/T Tires.

Hydrualic Disc Brakes with 1,600 psi Hydrastar actuator.

Oil bath hubs and bearings with little to zero maintenance.

10,000 lbs rated webbed limit strap on each swing arm.

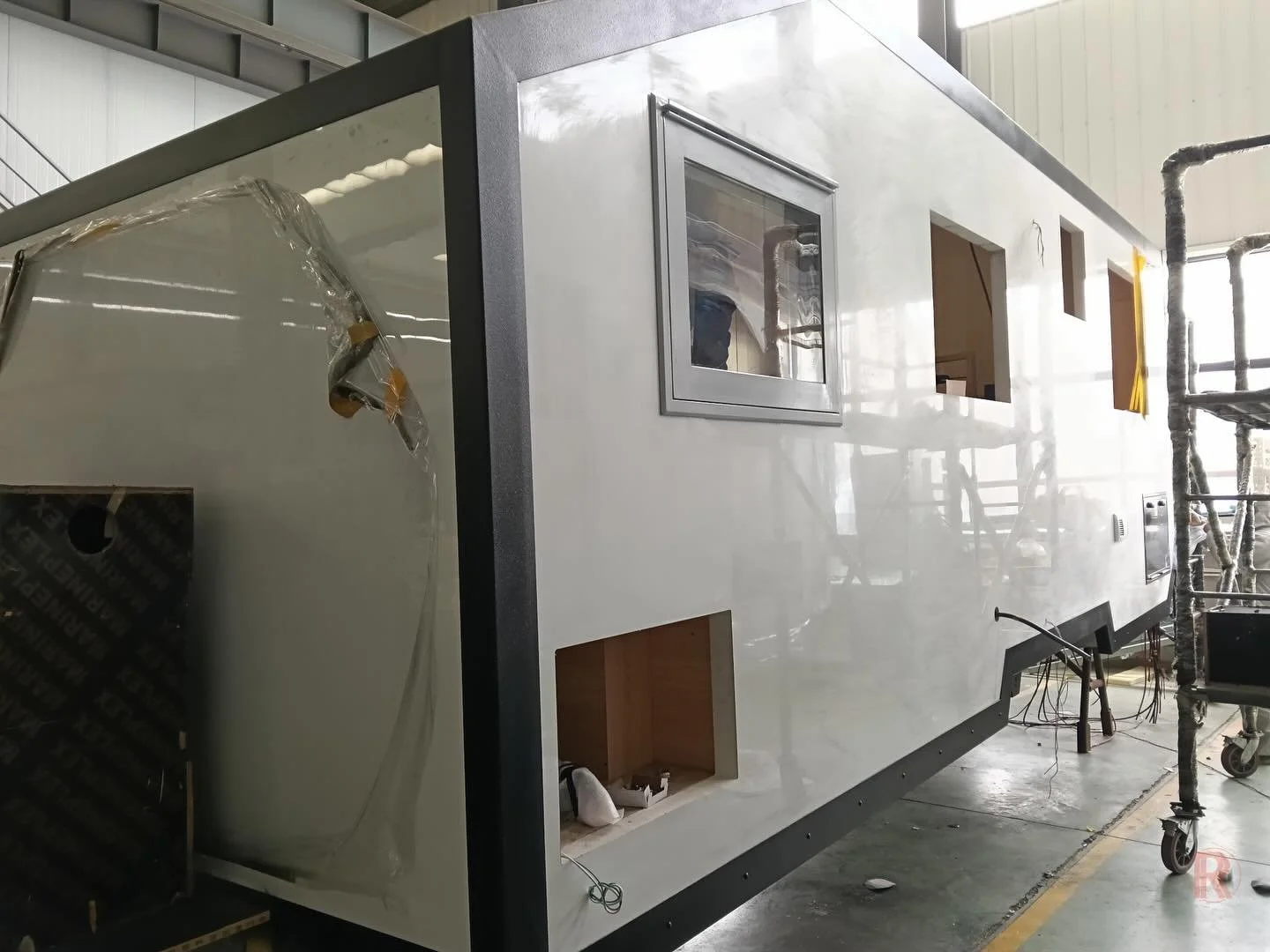

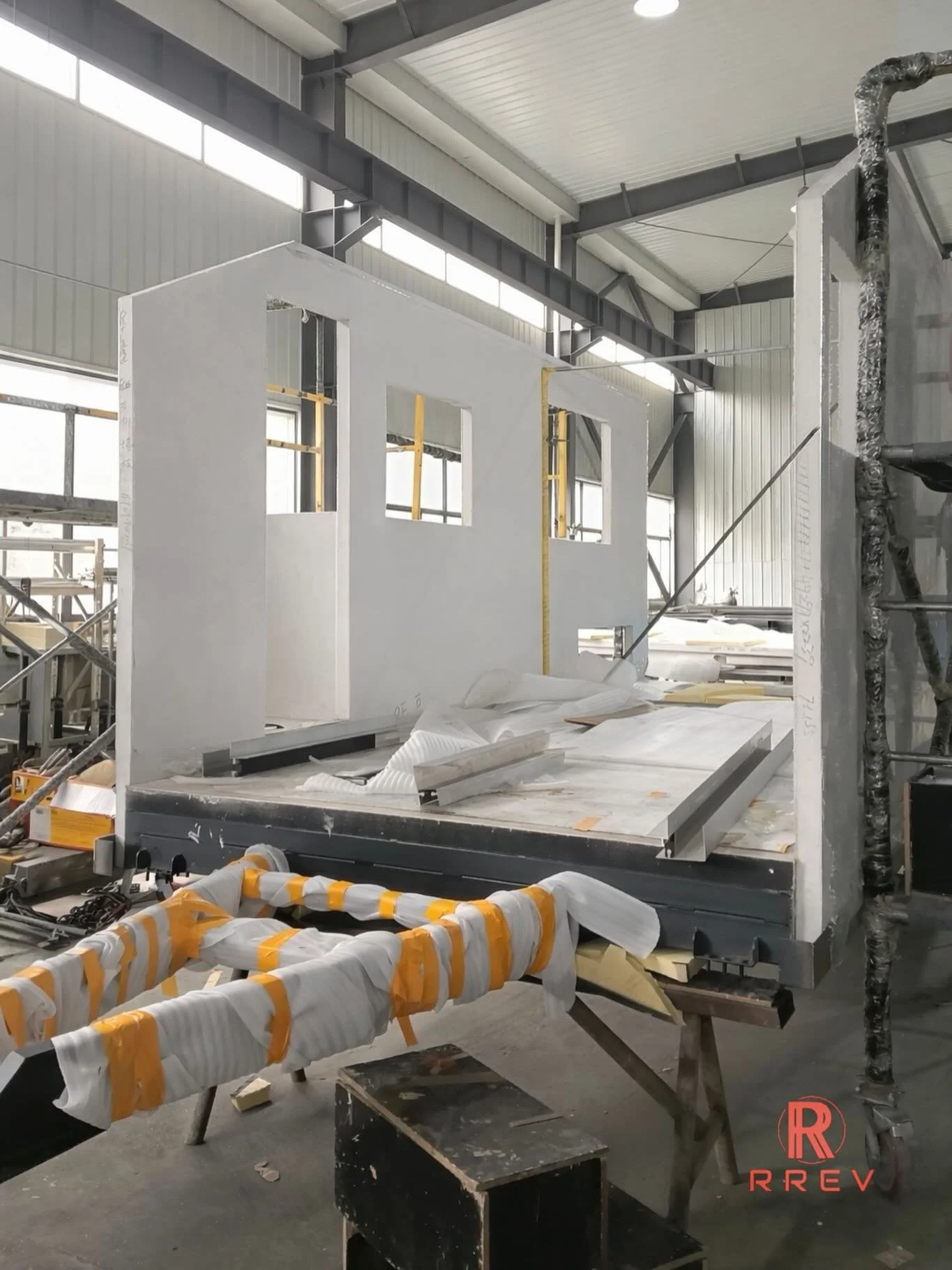

Walls & roof - 2.44” Thick

Floor - 3” Thick

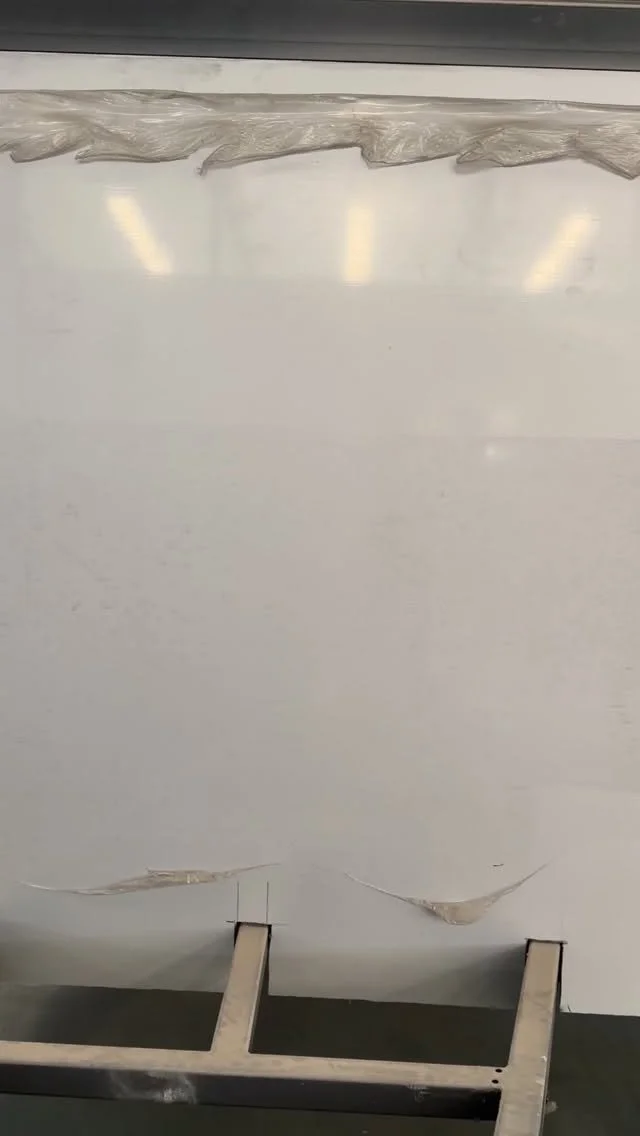

Patent Pending 4 Layer GRP Panels reinforced with an additional 5th layer of aluminum skin with baked paint on the outside for durability, and resistance.

Aluminum extrusions all across and aluminum angle plates on the inside.

9 Industrial grade high quality Polyamide thermal break molds to stop any thermal bridging.

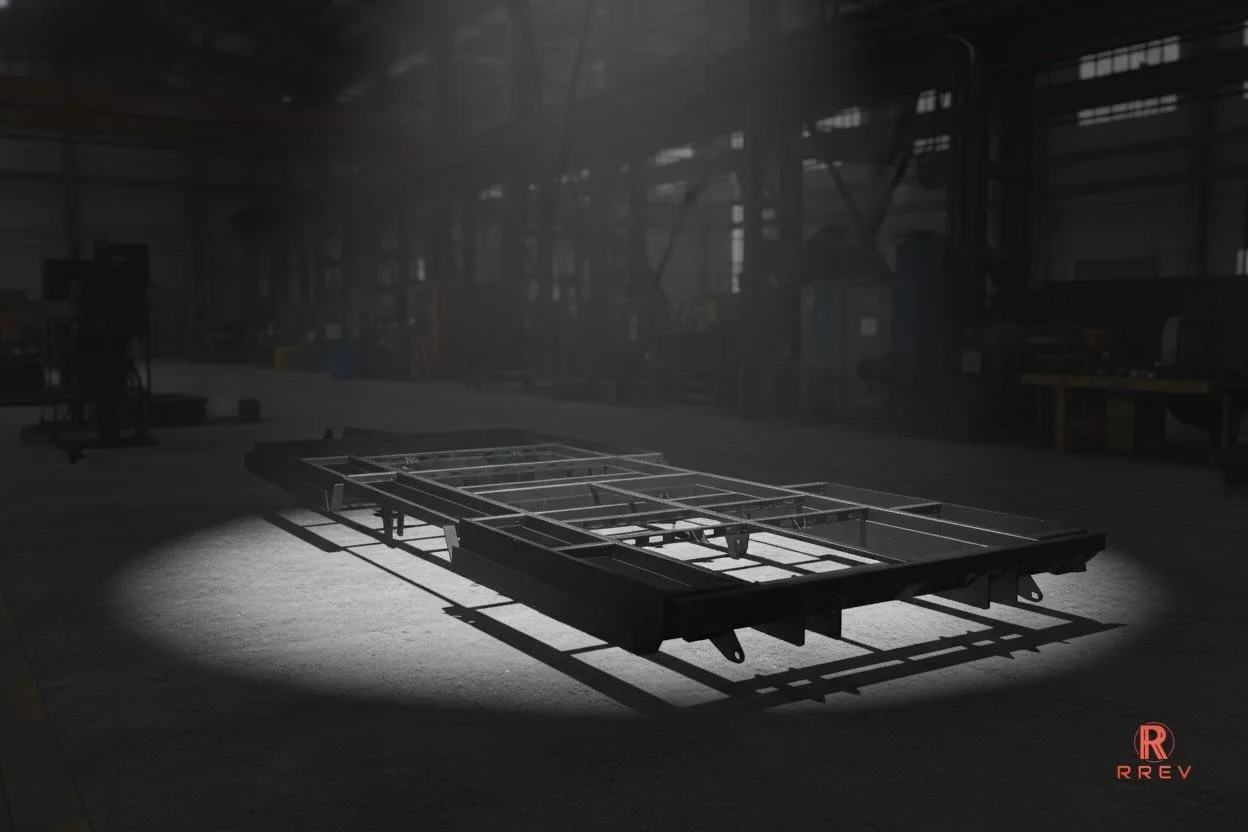

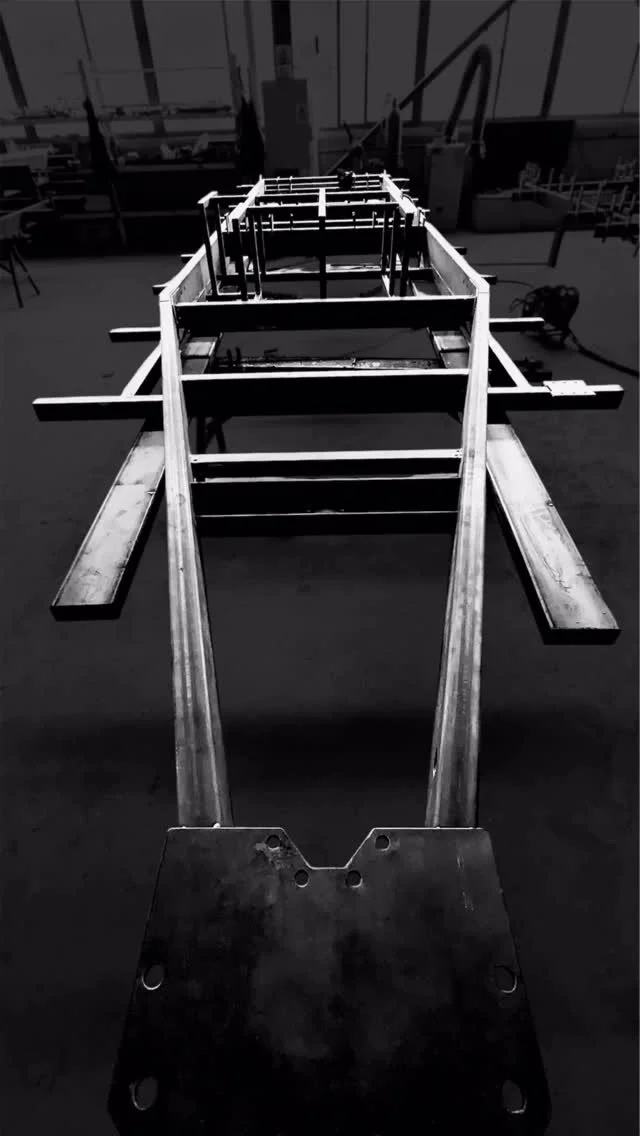

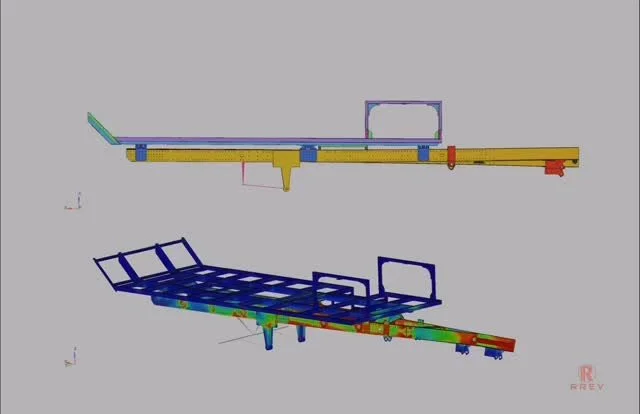

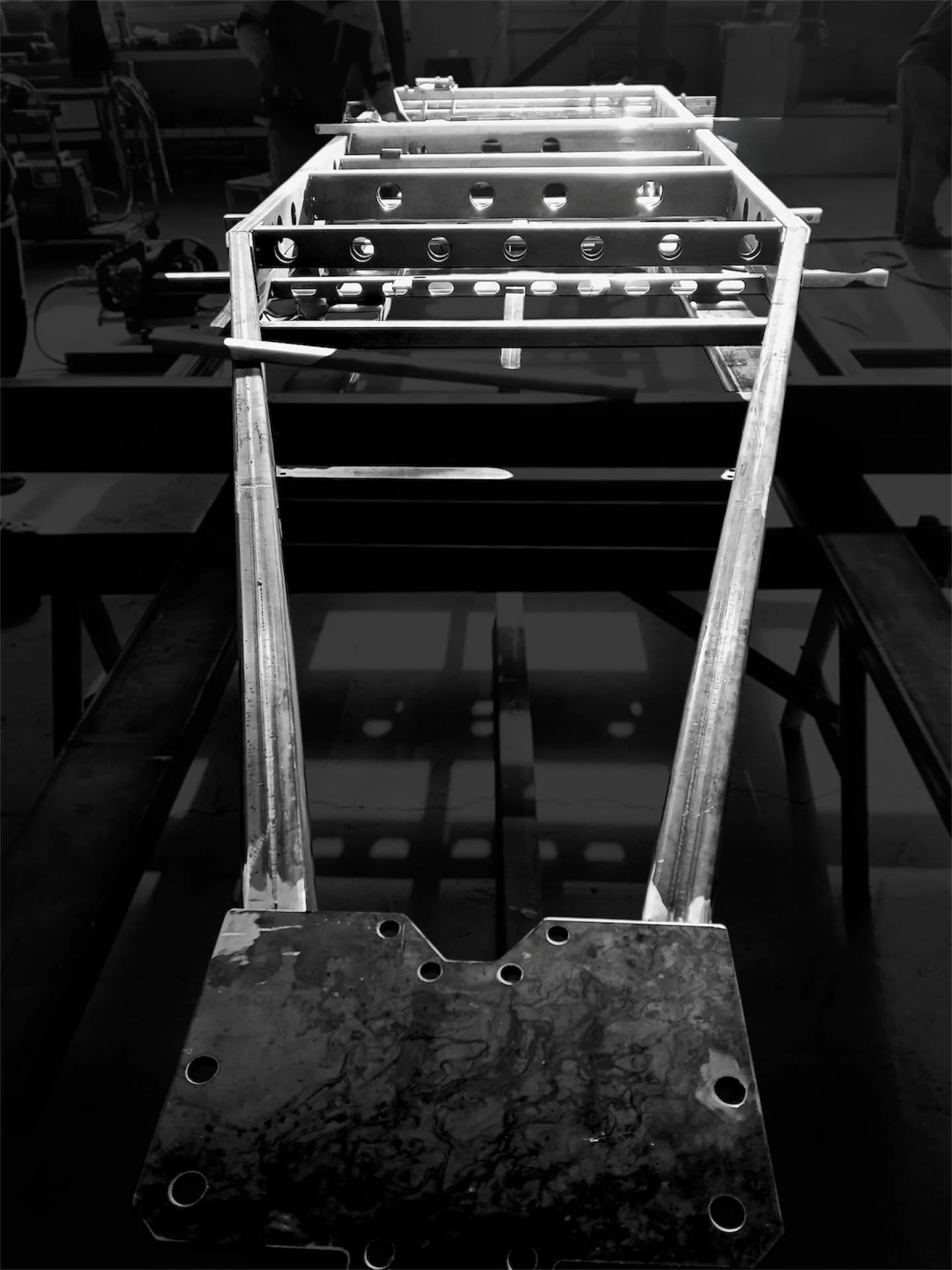

- 700L Steel with a minimum yield strength between 650 and 700 MPa (94-101 ksi).

- Hot-Dip Galvanized: For superior protection against corrosion and rust.

- Reinforced Steel Construction: Ensures maximum strength and load-bearing capacity.

- Engineered for Extremes: Designed to perform reliably under the most challenging conditions.

- Flex-Free Design: Maintains stability and integrity, eliminating concerns about flex.

Expedition door and windows made with aircraft grade aluminum with aluminum handles and weatherproof seals.

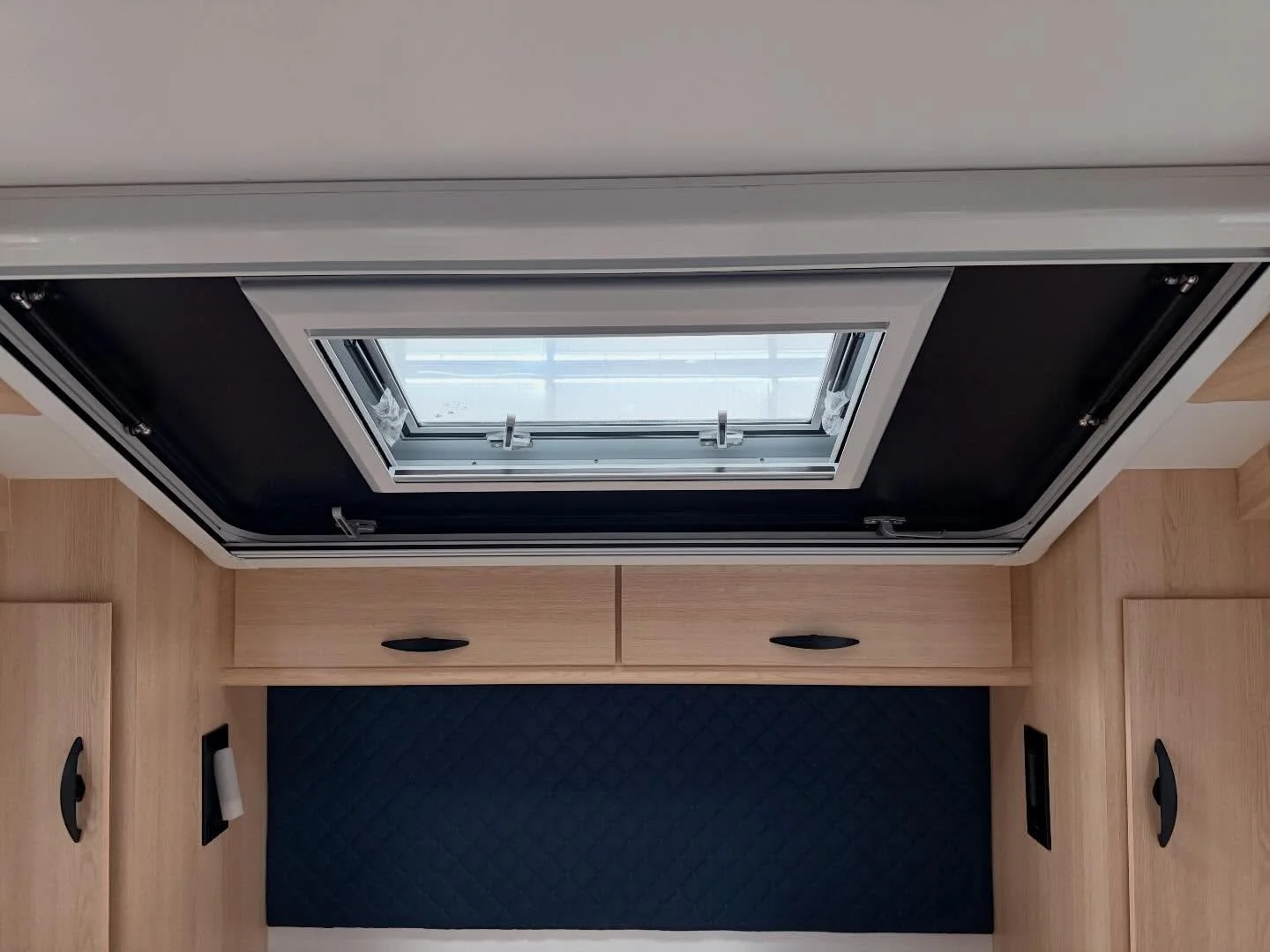

2 expedition style Safari Hatches with built in windows. One over the bed and one at the dinette.

7 Windows all around to experience vistas from anywhere in the cabin.

Expedition door with peek window and mesh screen.

All windows come with high quality integrated blackout and mesh screen.

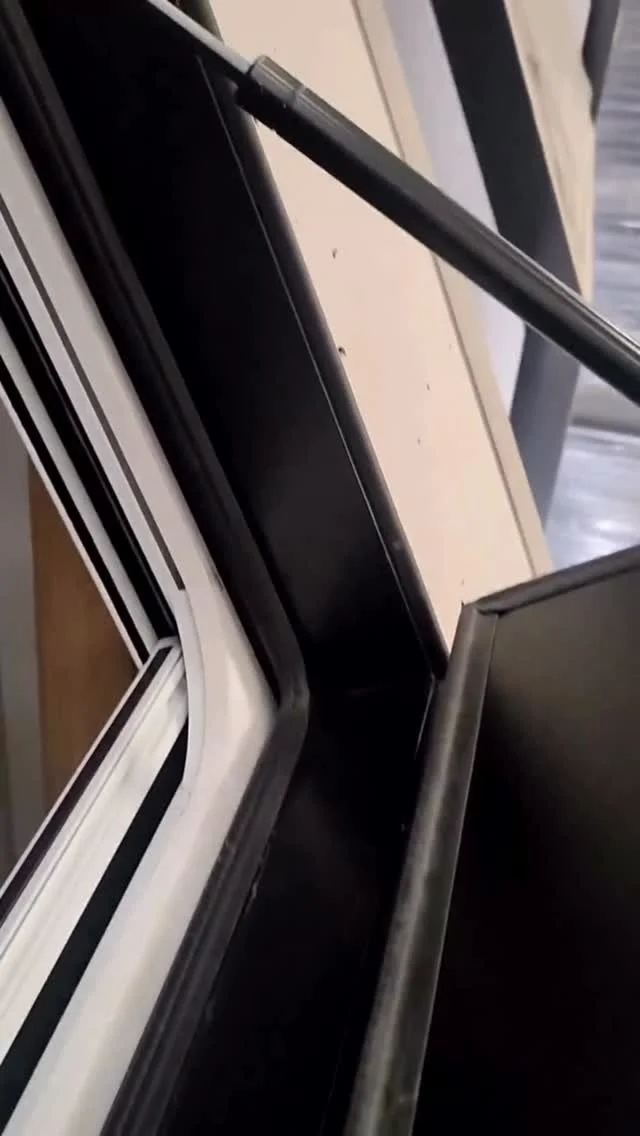

Heavy duty gas struts that allow 90 degree opening of the windows and can be open in rain and wind.

Windows are integrated with rain fly to avoid water dripping inside when open on a rainy day.

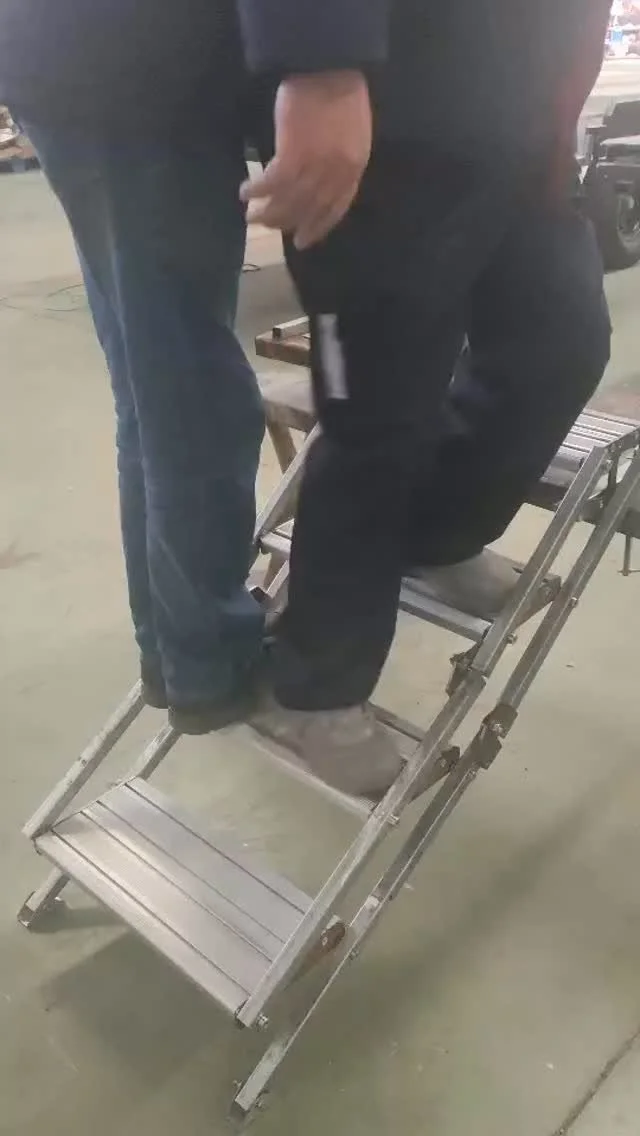

Sensor enabled staircase that opens upon opening the door. Staircase can be deployed and or retracted on the inside.

Front and Rear Strands Siberia Light Bars

Twin Passenger and Driver side LED lights.

Cruisemaster DO45+ Hitch.

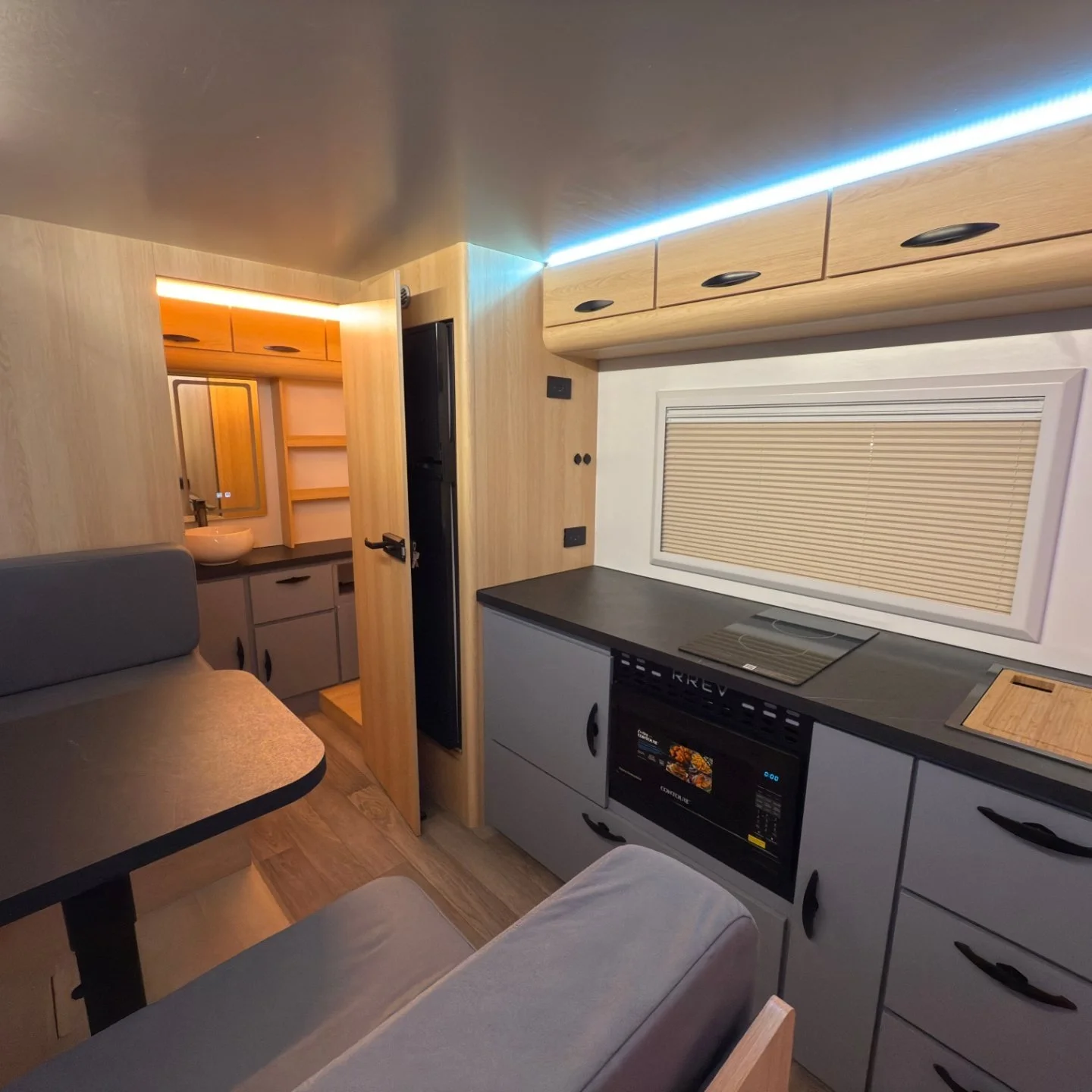

Sliding Outdoor Kitchen on the passenger side with two 120v AC outlets and water connection in the kitchen storage cabinet. Outdoor kitchen features an induction cooktop, prep area, sink, faucet and drain pipe.

Front ~39” deep storage box with a heavy duty locking large access door up front and 2 heavy duty locking access doors on sides for easy access to smaller items.

Front slope rain collection pipes on driver and passenger side.

Heavy duty aluminum rock sliders (optional).

Aluminum top roof side rails.

7000 lb detachable swivel tongue jack.

4 Corner Stabilizer Steadies.

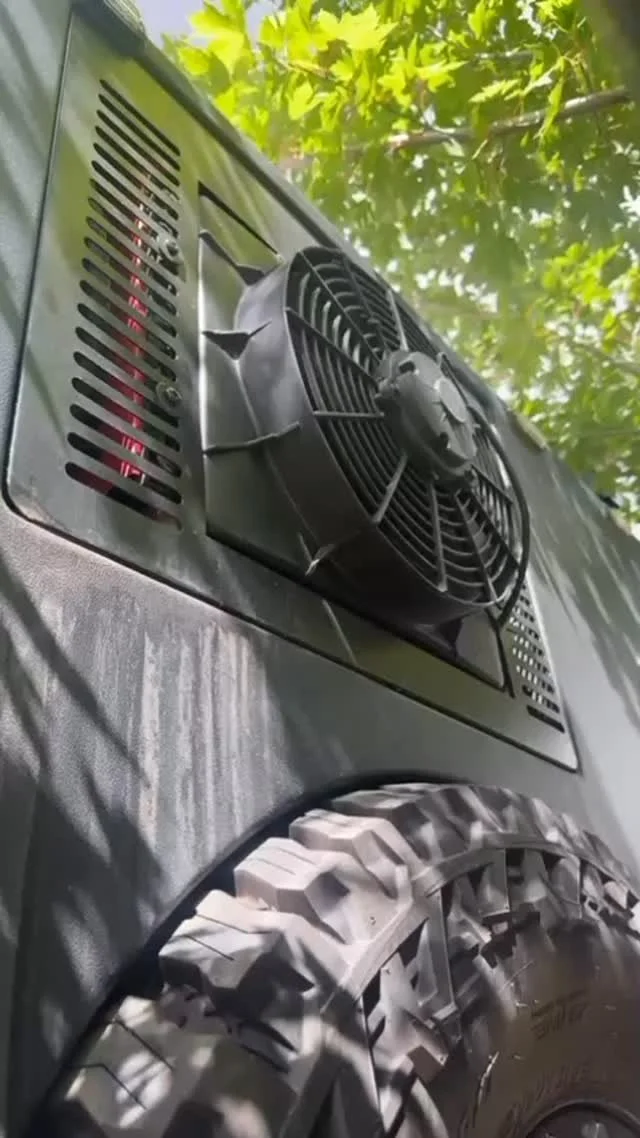

RREV’s signature GRP custom molded rear cowling with integrated 24v DC AC Compressor Condenser, Deployable ladder to the roof with rails, Rear storage box with optional Molle Panel for gear and 33” spare tire holder.

13,500 lbs rear winch.

Twin Bike Rack Mounts.

Rear recovery points with 11,000 lbs rated bars and fully forged 9Ton WLL shackles.

Fridge:

230L DC fridge with 5 temperature settings and Night mode for a quieter operation.

Anti-vibration and off road ready locking mechanisms.

Black Color.

Electric Oven (Optional):

Chef Collection's built in electric (120v) oven.

2.0 cu.ft oven capacity

Fan assist & broil function

Triple layer glass door

Vibrationsmart designed for vibration resistance

Climatesmart tested for extreme climates

Induction Cooktop:

Twin burner induction cooktop.

Full glass with touch screen buttons.

Safe cooking feature

9 temperature settings

RREV’s proprietary system, HUB, integrating all energy systems - solar, shore and tow vehicle charging, battery bank, inverter, lighting, bathroom vent fan, steps and more.

24v 400 AH Lithium Battery Bank featuring smart BMS integrated with RREV’s HUB system. Upgradeable to 800AH.

Samsung Android Touch Screen Control Panel (standard). Can option for an Apple iPad.

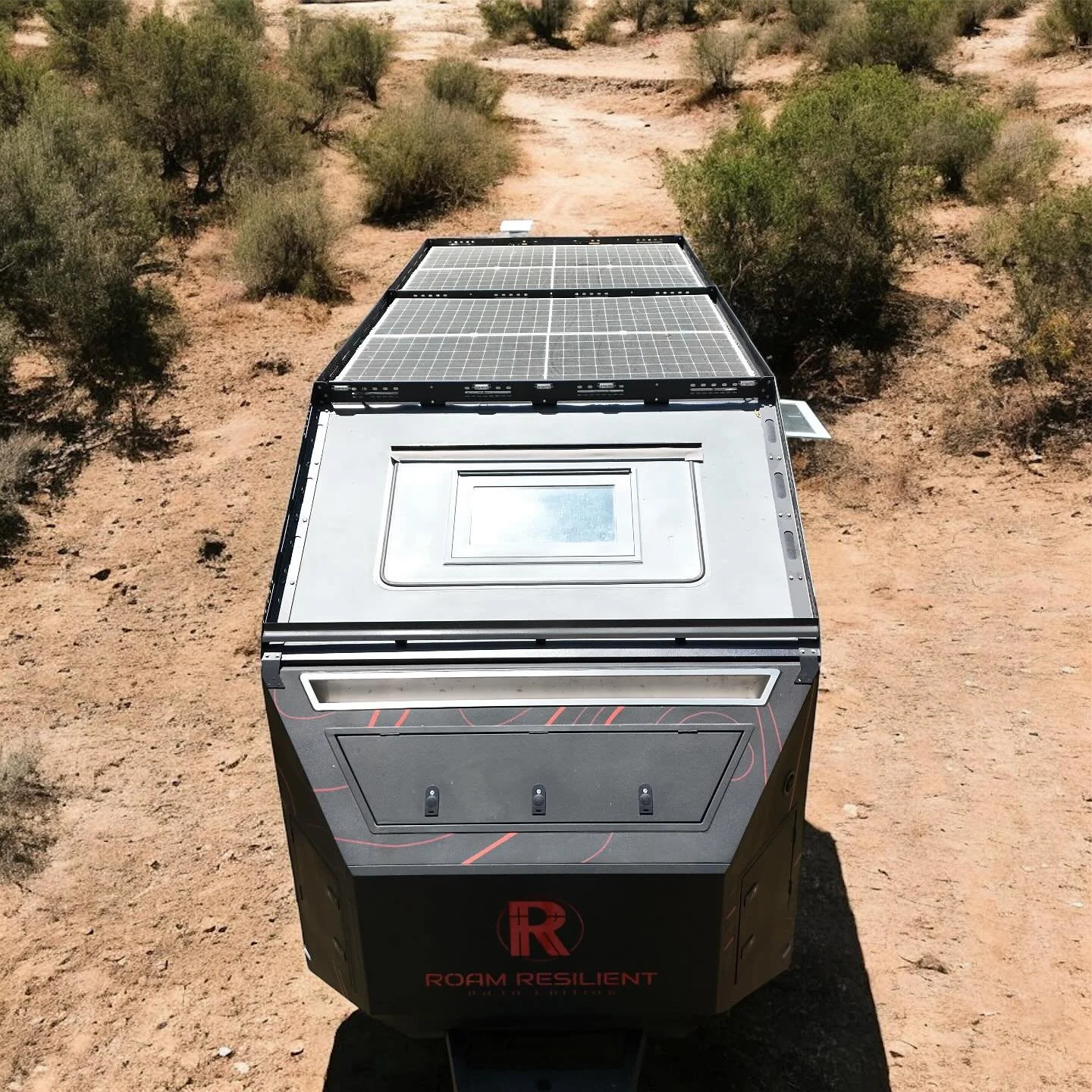

Three high quality 52v | 450W rigid solar panels wired in series for faster charging. Upgradeable to 4 x 450W.

HUB integrated 2400W 24v Victron Energy MPPT Solar Charger.

RREV HUB integrated 3000W 24v | 120V | 70 Amp Victron Energy Inverter Charger.

RREV HUB integrated 50A DC DC Charger with 50A Andersen plug at the tongue ready to connect to the tow vehicle.

RREV HUB integrated 50A Andersen connection for additional portable Solar Charging.

Multiple 120V outlets inside and outside the camper.

12v/24v USB outlets with fast charging. 12v step down with busbar for additional 12v connections.

Blue Sea Systems 30A AC MAIN with reverse polarity and 4 position distribution panel with First Defense Surge Protector prewired..

Victron Energy 1000 Amp Lynx distributor with Mega Fuses and Bussmman Fuse Panel.

RREV HUB app for web, Android and iOS with local access. Secure remote access is free for first 5 years of ownership and then $60/yr afterwards.

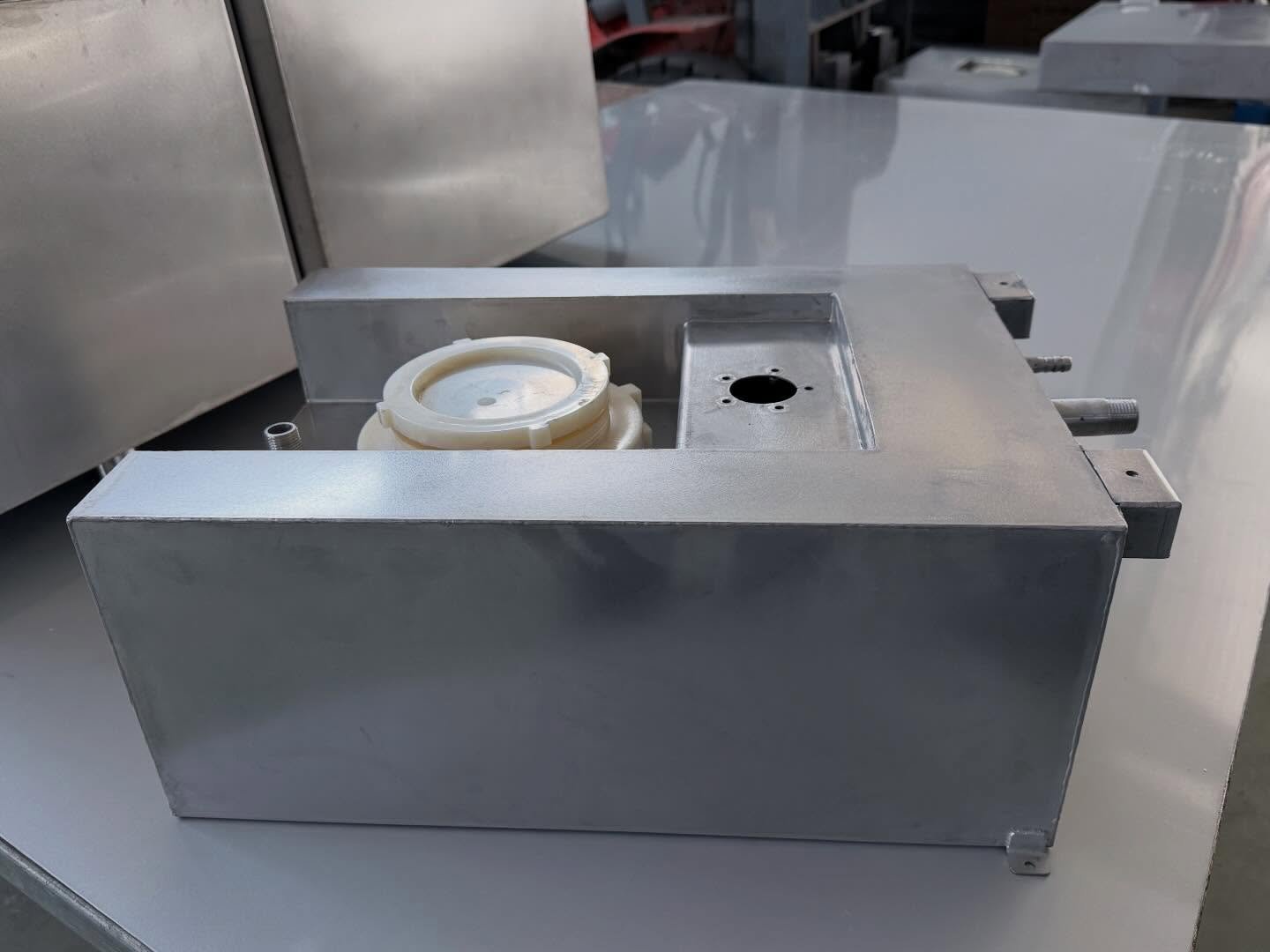

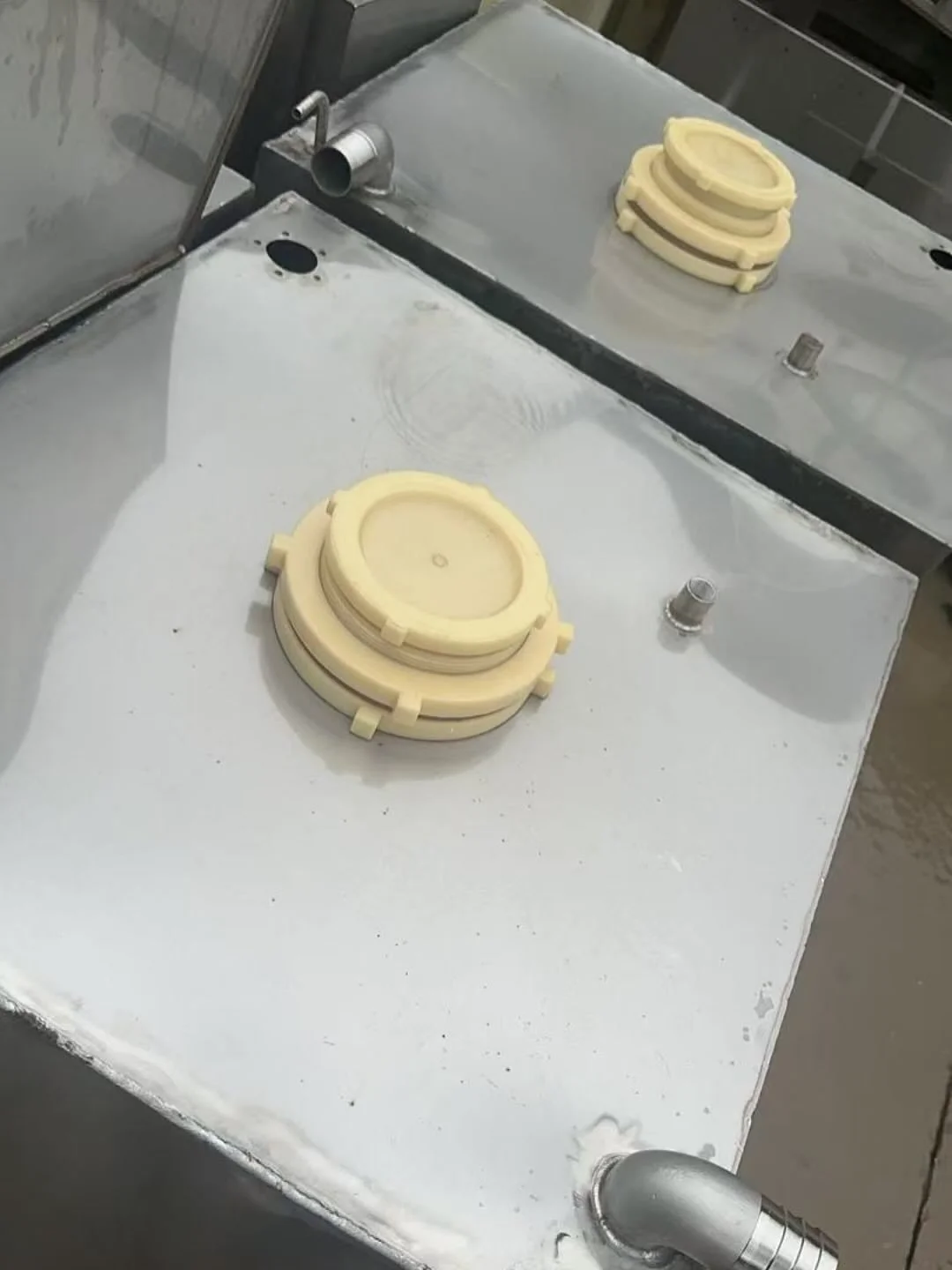

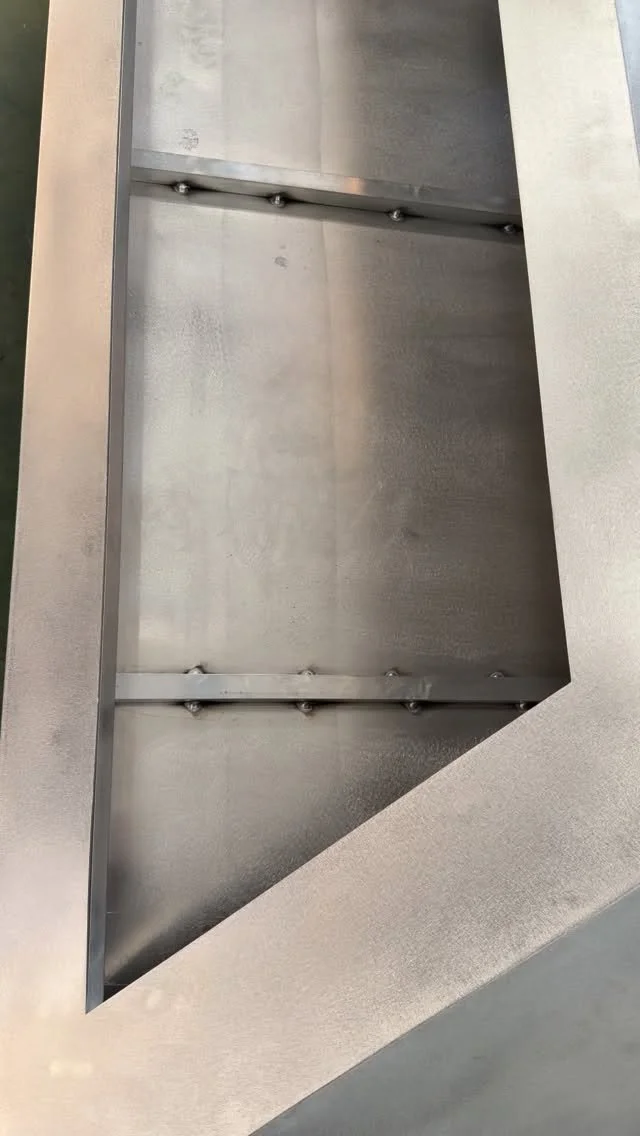

Custom 65 Gallon Stainless Steel General Water Tank with baffles, independent water pump and usage. Marine style pickup tube for maximum water usage.

Custom 16 Gallon Stainless Steel Buffer Tank with baffles, independent pump and usage. Marine style pickup tube for maximum water usage.

Custom 10 Gallon Stainless Steel Drinking Water Tank with baffles, independent pump and Acuva UV water filtration system. Marine style pickup tube for maximum water usage.

Truma Combi Diesel Water Heater.

27 Gallon Gray Water Tank.

All the plumbing and tanks (except gray tank) are inside therefore no problems with extreme cold.

iNet Ready Truma Combi Diesel Heater for air and water heating.

Ducted heating with outlets - 3 under the bed towards the alley, 1 above the fridge and 1 in the bathroom.

Custom made 24v DC | 11,000 BTU Air Conditioner.

-30F to 120F.

Dry Weight: ~5,952 lbs.

Tongue Weight: ~595 lbs. (adjustable. with air suspension).

GVWR: 8,500 lbs.

Suspension: 13,000 lbs

Track Width: 72”.

18.5′ Box | 24′ Long | 7.3′ Wide.

Height is adjustable (Air suspension).

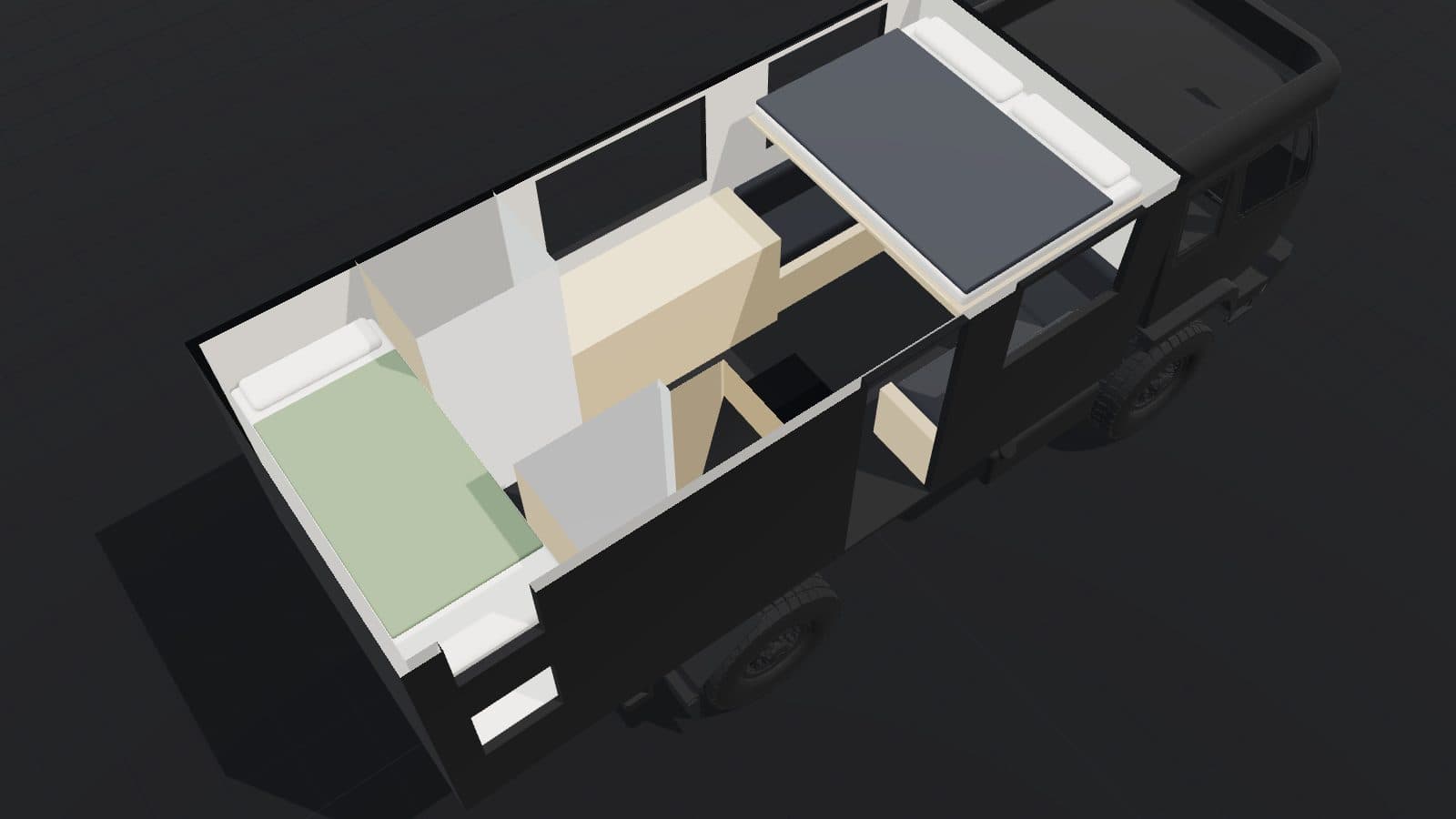

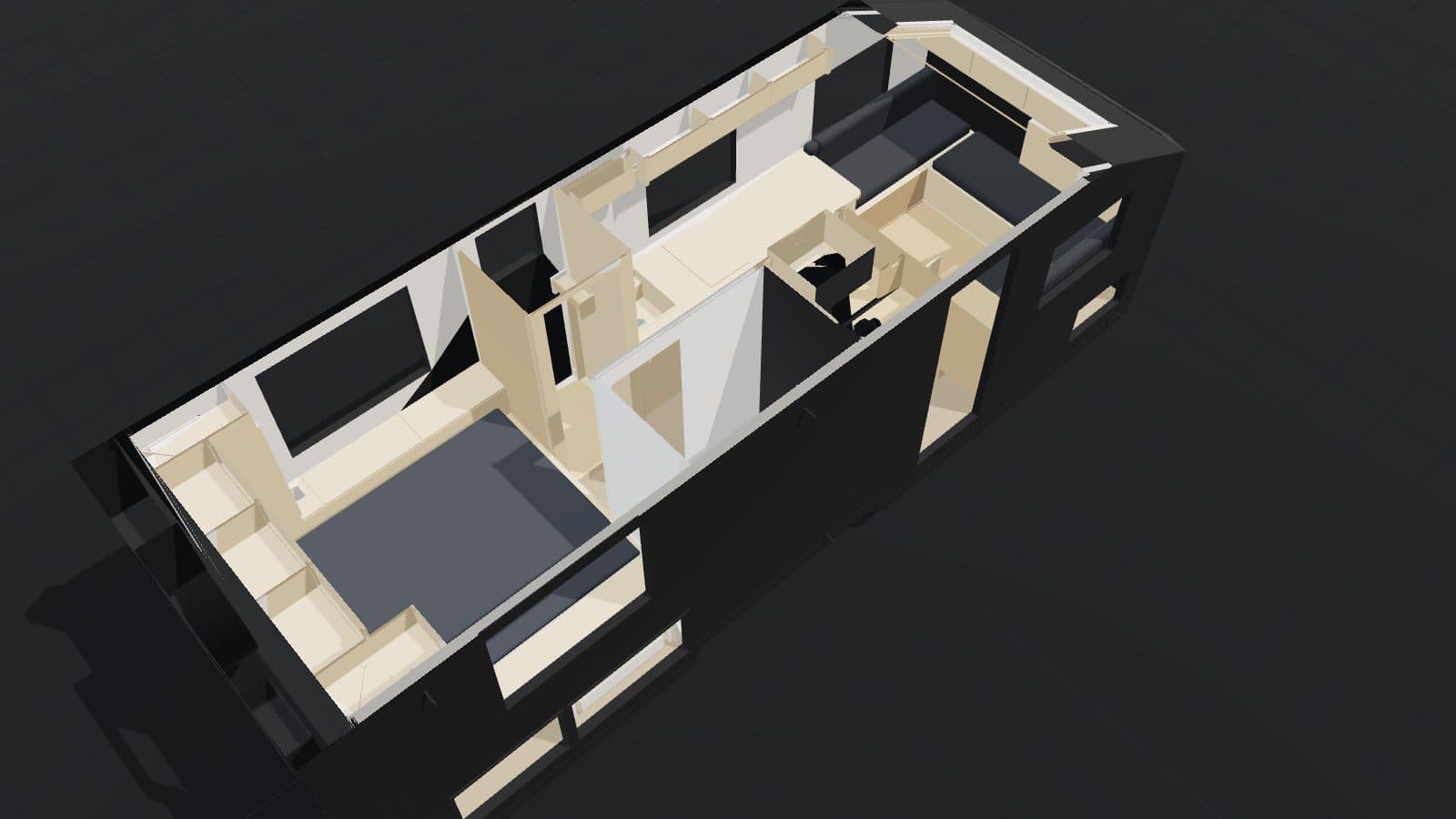

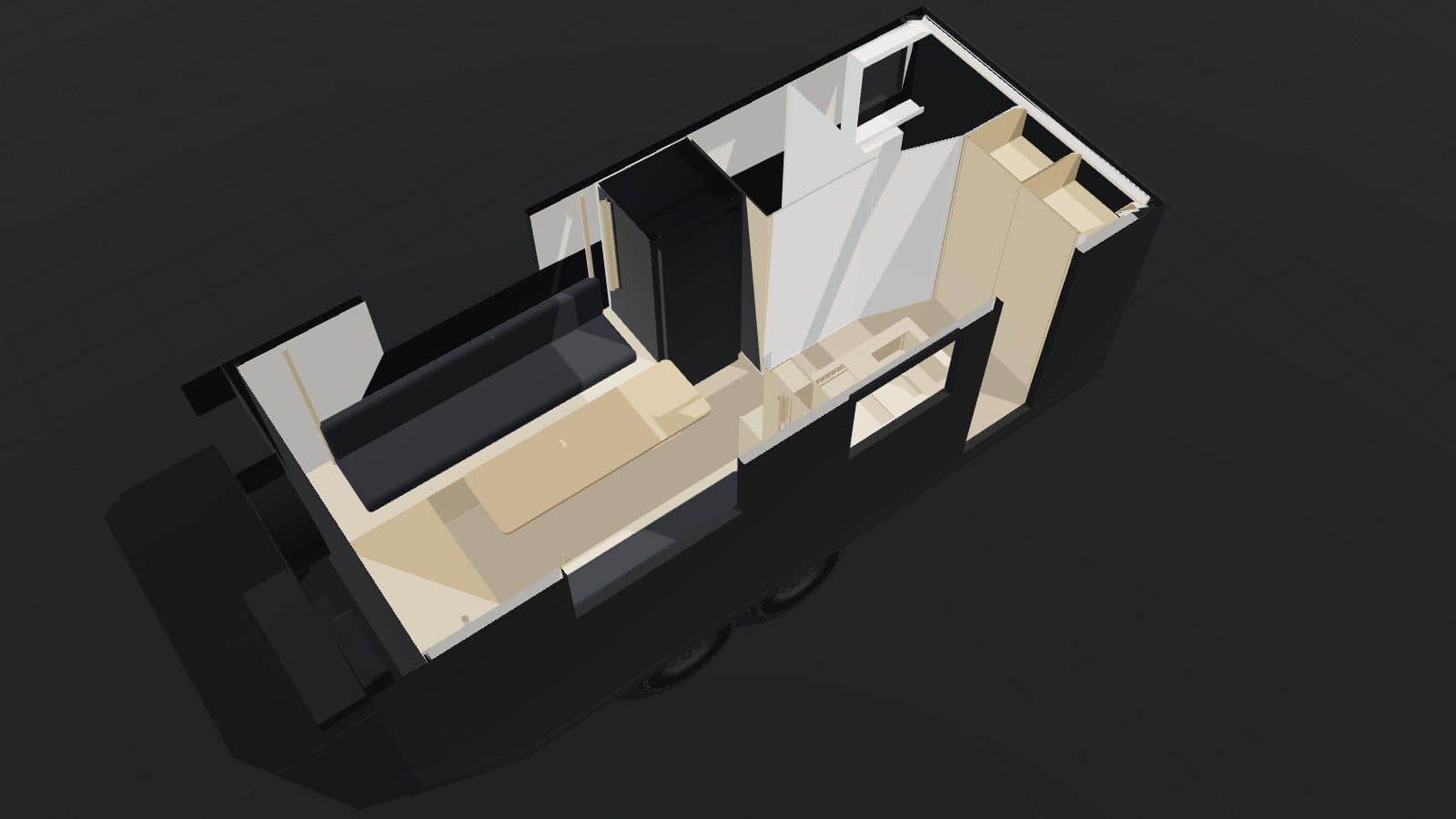

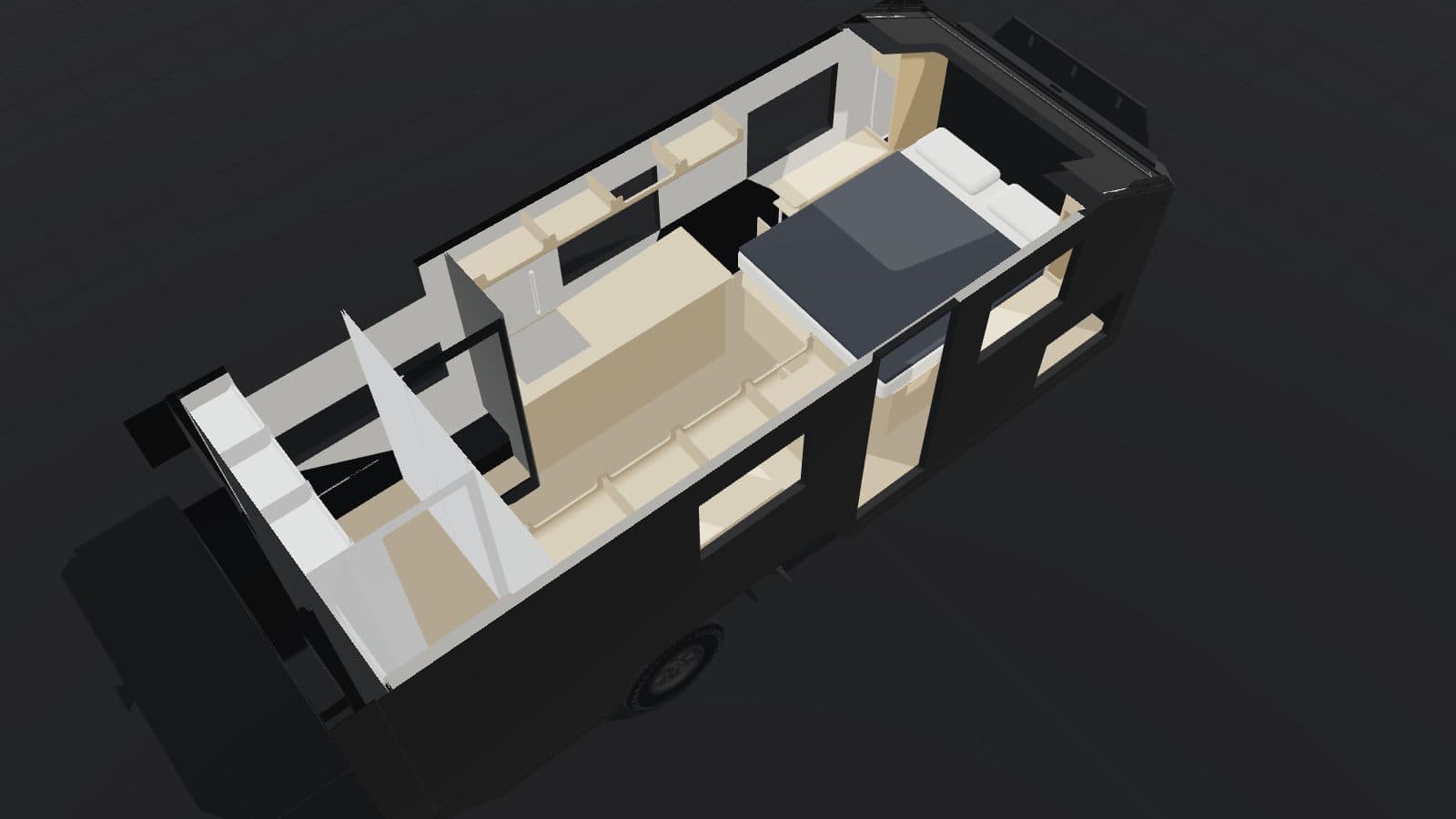

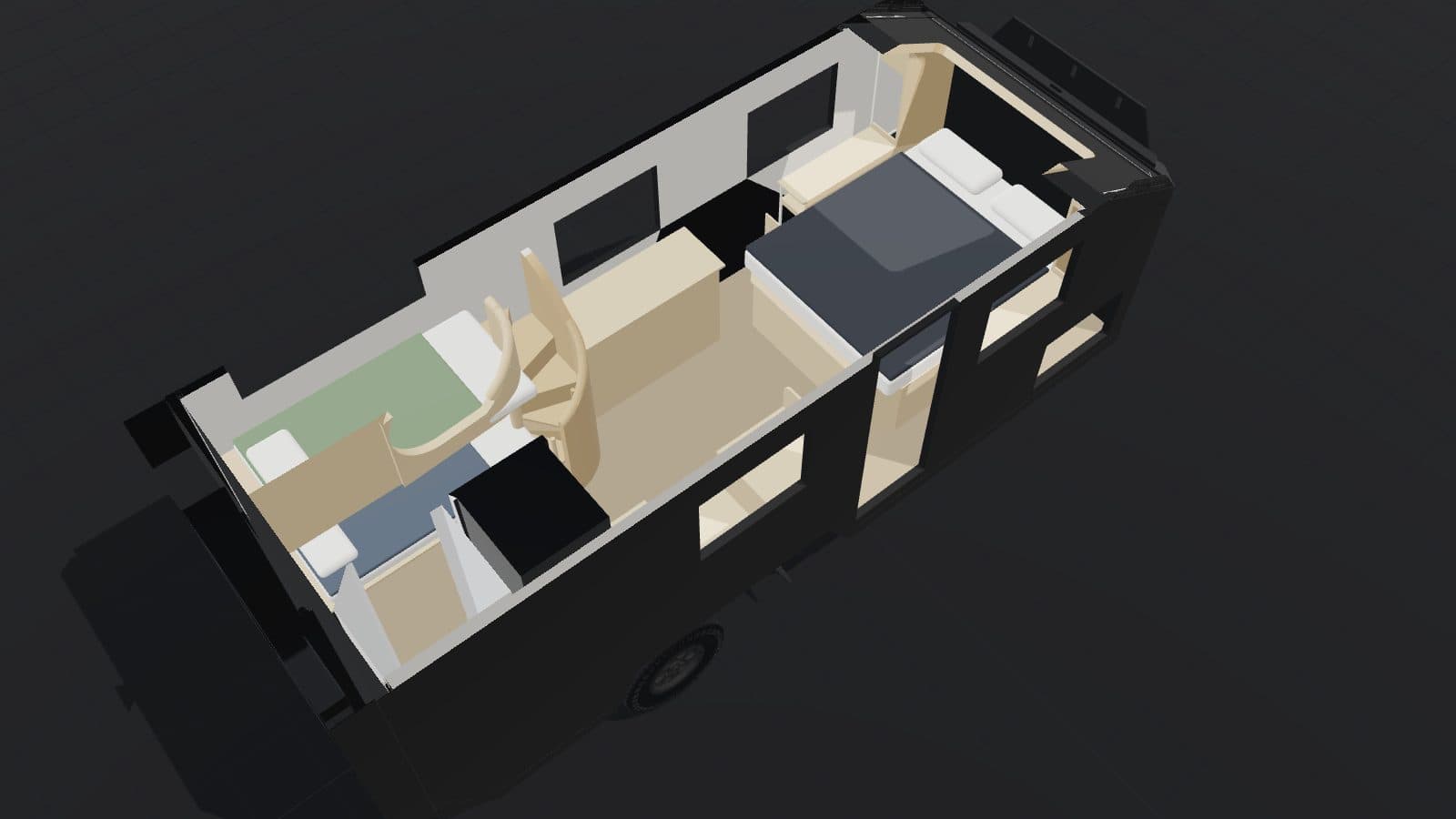

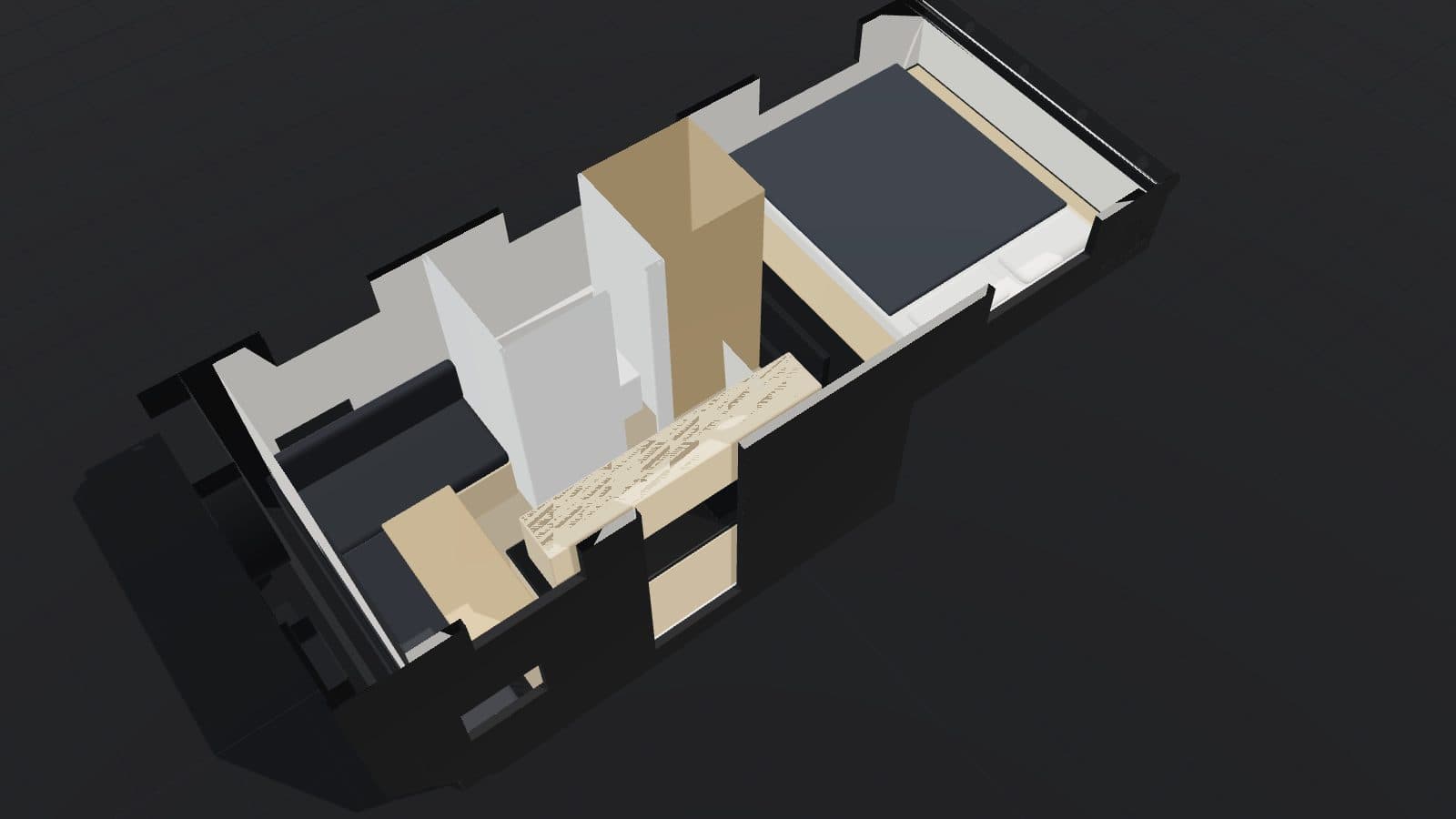

3 People (Non-Bunk)

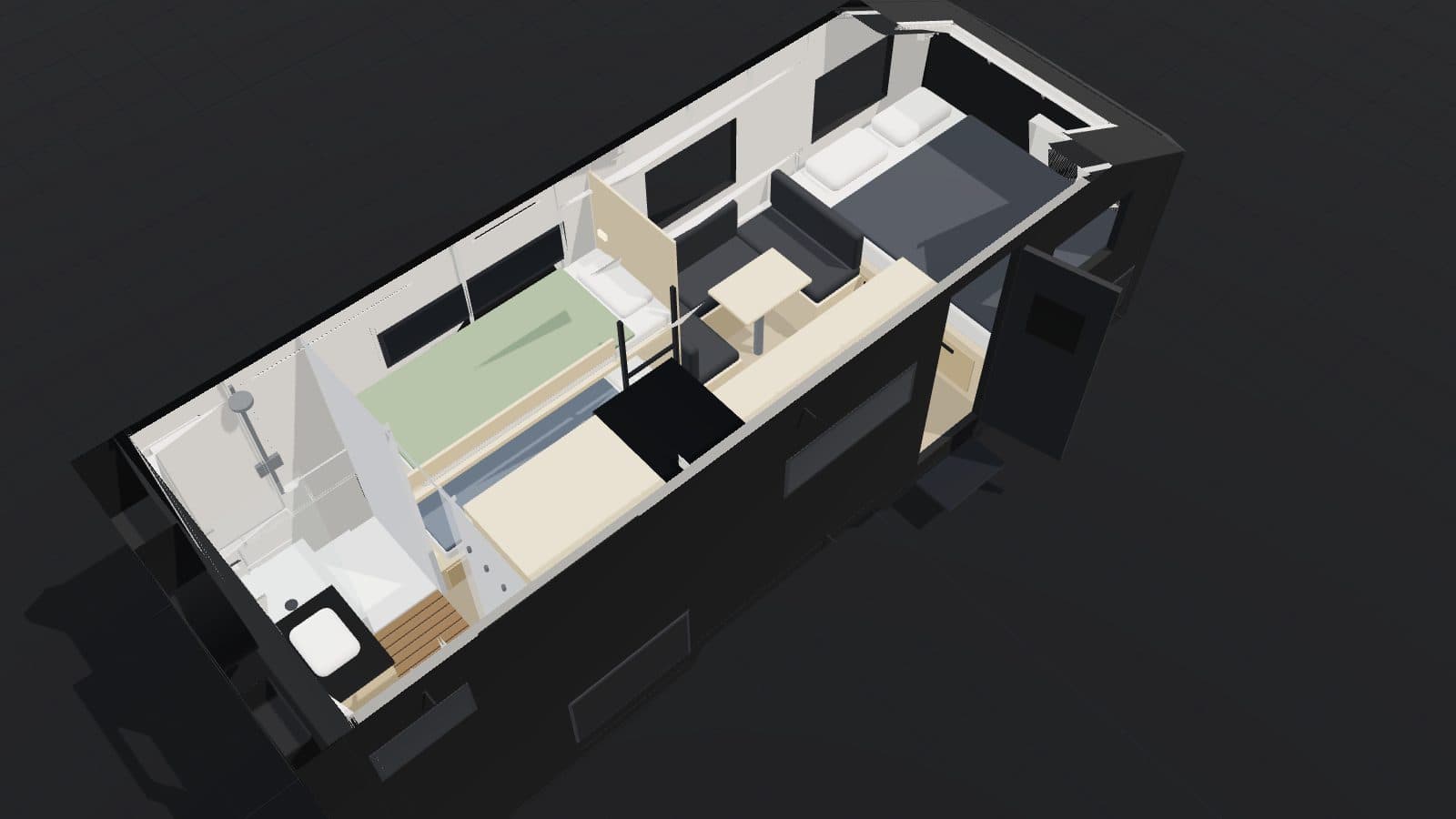

5 People (Bunk)

Queen Size Bed.

Convertible Dinette/Sofa to Bed.

Outside Storage:

Driver side access cabinet with heavy duty weatherproof locking door.

Massive front storage box with 3 heavy duty weatherproof locking doors.

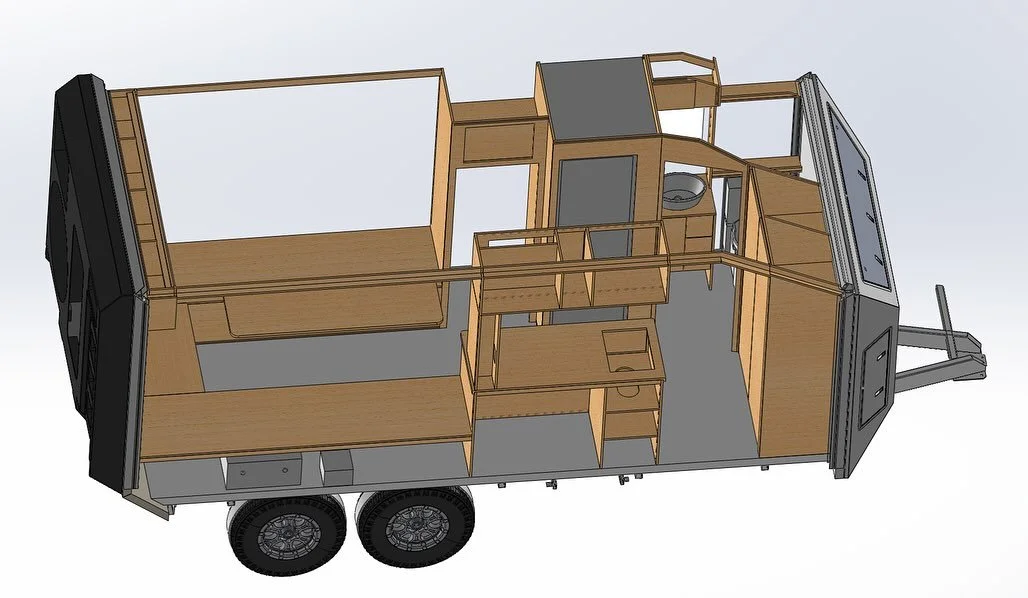

Inside Storage:

Kitchen: 4 Overhead Cabinets, 1 large Storage Cabinet (when oven is not optioned), 3 sliding drawers, Under the sink and near floor storage with access doors.

Bed: 4 overhead cabinets, 2 side closets, 2 bedside lift door cabinets, 1 bottom drawer and 2 bedside pockets. Large under the bed storage space with a hatch.

Dinette: 3 overhead cabinets, 2 under the dinette near floor drawers.

Bathroom: 3 overhead cabinets, 2 top shelves, 3 under the countertop shelves, 1 drawer and 2 storage space with doors.

All doors are locked with aluminum locking handle so on and off road stowing.

Standard Casette Toilet.

OGO Composting Toilet (Optional).

Cruisemaster DO45+ Hitch with 360 degrees of articulation.

10,000 lbs rated and ADR Compliant.

Full Size Electric Oven.

OGO Composting Toilet.

Underbody Rock Sliders.

King Shocks for the Suspension.

Roof Rack with Roof top tent (with this option only 2 Solar panels can be fitted up on the roof). *Available later this year.

Additional 450W Solar Panel

Additional 400 AH 24v Smart BMS and HUB integrated Lithium Battery.

Molle Panel for Rear Cowling Storage.

Rear Storage Box Rack.

Rear eBike Rack (220 lbs).

Rear Actuated Motorbike Rack (300 lbs).

Current lead time is 6 months.

15 years frame.

2 years craftsmanship

Applicable appliance manufacturers warranty for equipment.

Base Price (Non-Bunk): $120,000 USD

Base Price (Bunk): $121,500 USD
